Kilargo IS4025 Heavy Duty Low Profile Threshold Plate - Available in Various Sizes

Kilargo IS4025 Heavy Duty Low Profile Threshold Plate

Threshold Ramp Plate enable a smooth entrance for mobility equipment, wheelchairs, or scooters across uneven door thresholds.

Threshold Ramp Plate Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

Features:

• Used in conjunction with other Kilargo door bottom seals to help prevent rain infiltration, draught and smoke penetration
• Their 6mm low profile design ensures compliance with the access for people with disability requirements, AS1428/1 and NCC D2.15 & D3.3, particularly for wheelchair traffic.
• These threshold plates have a durable, anodised finish and are supplied with PVC bedding pads to help eliminate vibration, noise and moisture ingress.

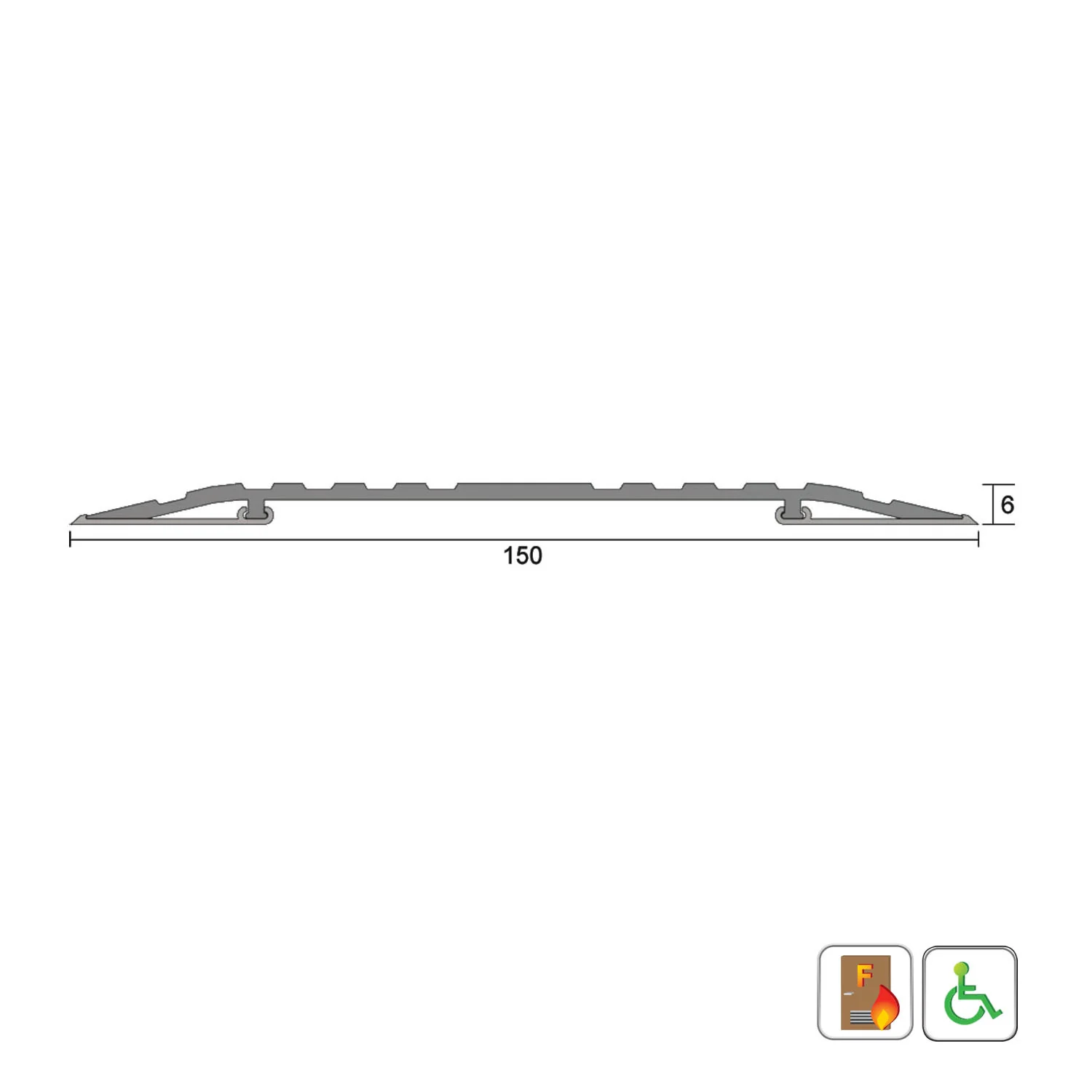

Specifications:

• Height: 6mm
• Width: 150mm
• Available Sizes: 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 2250mm, 2500mm, 2750mm, 3000mm, 3250mm, 3500mm, 3750mm, 4000mm, 4250mm, 4500mm, 4750mm and 5000mm
• Finish: Clear Anodised
• Fixing:
  • Stainless steel fixing screws and plugs supplied
  • Alternatively, fasten with builders adhesive for concealed fixing

Approval/s:

• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Complies with AS1428/1 (Design for access and mobility)
• Conforms to NCC D2.15 & D3.3 (Access for people with disabilities)
